Common Water Quality Measurement Digital RS485 pH Sensor Electrode Probe CS1701D

Short Description:

CS1701D digital pH sensor is suitable for general industrial processes, with double salt bridge design, doublelayer water seepage interface, and resistance to medium reverse seepage. The ceramic pore parameter electrode oozes out of the interface, which is not easy to be blocked, and is suitable for the monitoring of common water quality environmental media. Adopt PTFE large ring diaphragm to ensure the durability of the electrode;Application industry: supporting agricultural water and fertilizer machine


  • Model NO.: CS1701D
  • Installation Type: NPT3/4′′
  • Housing material: PPS
  • Waterproof grade: IP68
  • Trademark: Twinno
  • Measurement range: 0-14pH

Product Detail

Product Tags

CS1701D Digital pH Sensor Series

2a6245205354b95b9a1a6c956562d434_The-Most-Economy-Digital-pH-Sensor-Electrode-Probe-RS485-4-20mA-pH-Electrode          9895201488335e0854b6eb4175111107_Economy-Digital-pH-Sensor-Electrode-RS485-4-20mA-output-signal     1666667376(1)

CS1700D digital pH sensor is suitable for general industrial processes, with double salt bridge design, double
layer water seepage interface, and resistance to medium reverse seepage. The ceramic pore parameter electrode
oozes out of the interface, which is not easy to be blocked, and is suitable for the monitoring of common water
quality environmental media. Adopt PTFE large ring diaphragm to ensure the durability of the electrode;

Features

1666666608(1)
Wiring
                                  1666667193(1)
                             1666667578(1)

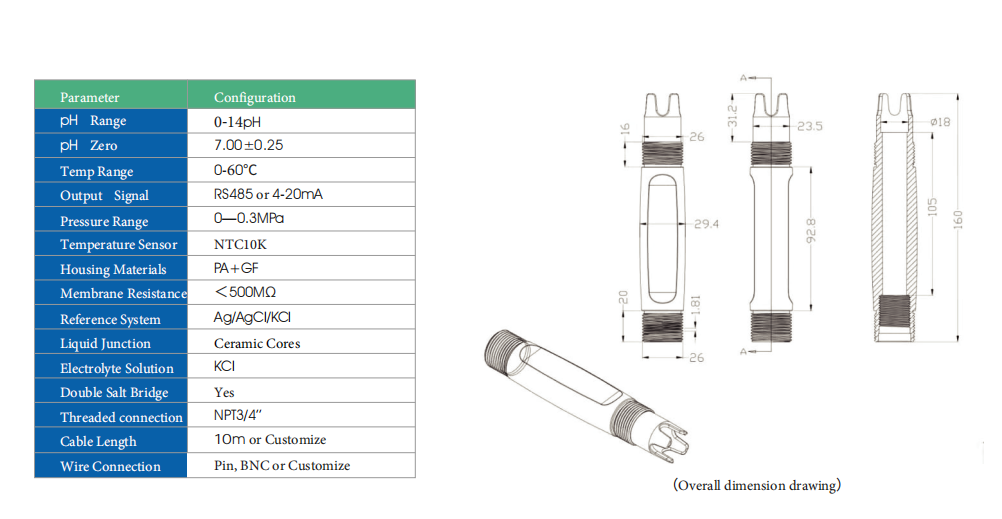

Technicals
1666674837(1)
