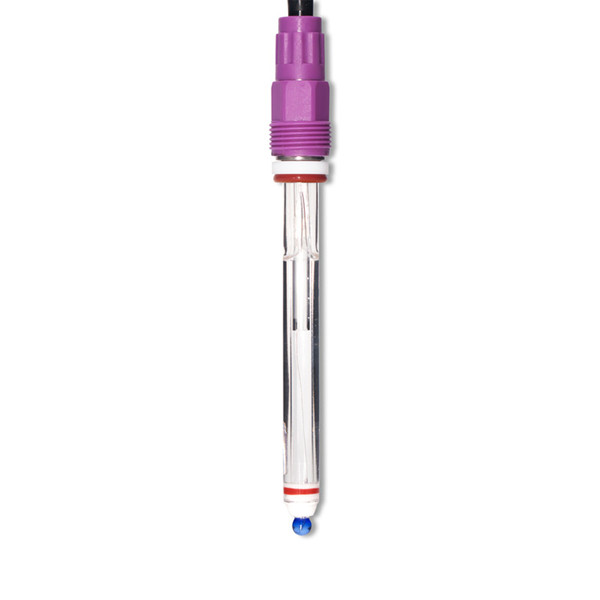

CS1545C/CS1545CT PH Meter 0-14 Range pH High temperature Electrode Probe

Short Description:

compatible with a variety of analog signal electrodes. Complete functions, stable performance, easy operation, low power consumption, safety and reliability are the outstanding advantages of this instrument. This instrument is equipped with RS485 transmission interface, which can be connected to the host computer through ModbusRTU protocol to realize monitoring and recording.double-junction reference GPT medium electrolyte, and a porous ,large-area PTFE salt bridge. The plastic case of the electrode is made of modified PON, which can withstand high temperature up to 100°C and resist strong acid and strong alkali corrosion. It is widely used in wastewater treatment and fields including mining and smelting, papermaking, paper pulp, textiles, petrochemical industry, process of semiconductor electronic industry and downstream engineering of biotechnology.

Customized support: OEM, ODM
Waterproof grade: IP68
Type: pH sensor High temperature
Certification: CE ISO
Model Number: CS1545C/CS1545CT
Industrial rs485 online water orp pH sensor: PH Sensor Output Industry

Send email to us Download as PDF

Product Detail

Product Tags

CS1545C/CS1545CT PH Sensor High Temperature

Specifications

pH range: 0-14pH
pH zero point: 7.00±0.25
Temperature range: -20-130°C
Pressure resistance: 0-0.6MPa
Temperature Sensor:
CS1545C: None
CS1545CT: PT1000
Shell material: glass
Membrane resistance: <800MΩ
Reference system: Ag/AgCL
Liquid interface: porous ceramic
Double salt bridge system: Yes
Electrolyte solution: KCL
Connection thread: PG13.5
Electrode connection: S8, K9, VP6, cable
Cable length: 5m or as agreed
Cable connector: pin, BNC or as agreed

Part Numbers

Name	Content	Number
temperature sensor	None	N0
	NTC10K	N1
	NTC2.252K	N2
	PT100	P1
	PT1000	P2
Cable Length	5m	m5
	10m	m10
	15m	m15
	20m	m20
cable connector	Wire Boring Tin	A1
	Y insert	A2
	One-line pin	A3
	BNC	A4
