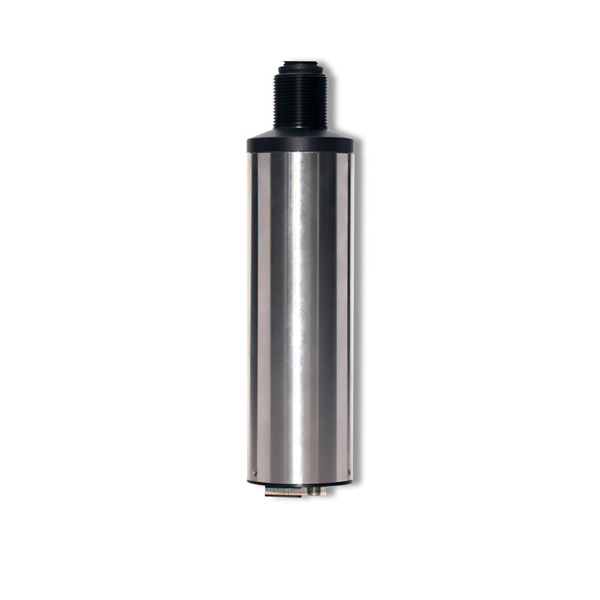

Digital Turbidity Sensor with Automatic Cleaning CS7835D

Short Description:

Typical application:
The principle of the turbidity sensor is based on the combined infrared absorption and scattered light method. The ISO7027 method can be used to continuously and accurately determine the turbidity value. According to ISO7027 infrared double-scattering light technology is not affected by chromaticity to determine the sludge concentration value. The self-cleaning function can be selected according to the use environment. Stable data, reliable performance; built-in self-diagnosis function to ensure accurate data; simple installation and calibration.

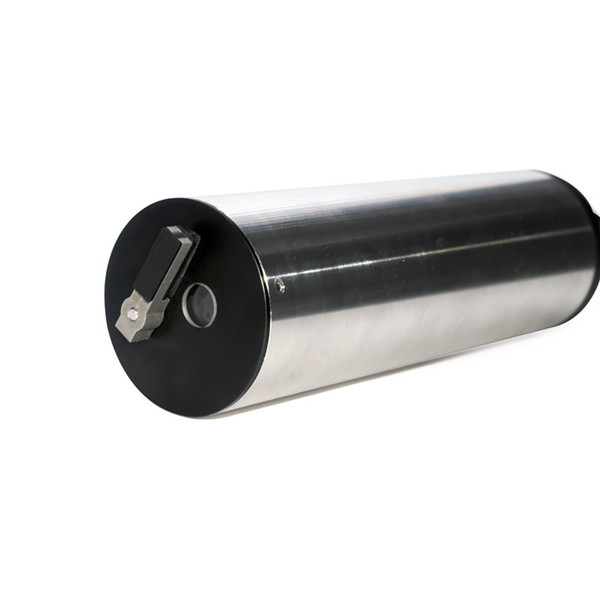

The electrode body is made of 316L stainless steel, which is corrosion-resistant and more durable. The seawater version can be plated with titanium, which also performs well under strong corrosion. Fully automatic electrode scraper, self-cleaning function, effectively prevent solid particles from covering the lens, improve measurement accuracy, and prolong use accuracy.
IP68 waterproof design, can be used for input measurement. Real-time online recording of Turbidity/MLSS/SS, temperature data and curves, compatible with all water quality meters of our company.

Customized support:: OEM, ODM
Model Number:: CS7835D
Housing material:: PVC+316 Stainless steel
Type:: Digital online turbidity sensor
Calibration:: Standard liquid calibration, water sample calibration
Protection:: 0.01-400 NTU Water Turbidity Meter Analyzer Sensor

Send email to us Download as PDF

Product Detail

Product Tags

CS7835D Digital Turbidity Sensor with Automatic

Cleaning

Typical application:

Turbidity monitoring of water from waterworks, water quality monitoring of municipal pipeline

network; industrial process water quality monitoring, circulating cooling water, activated carbon filter effluent,

membrane filtration effluent, etc.

Main features:

1- The internal upgrade of the sensor can effectively prevent the internal circuit from dampness and dust

accumulation, and avoid damage to the internal circuit.

2-The transmitted light adopts stable invisible near-monochromatic infrared light source, which avoids the

interference of chroma in liquid and external visible light to sensor measurement.And built-in luminosity

compensation, improve the measurement accuracy.

3-The use of quartz glass lens with high light transmittance in the optical path makes the transmission and

reception of infrared light waves more stable.

4- Wide range, stable measurement, high precision, good reproducibility.

Technical parameters:

Model No.	CS7835D
Power/Outlet	9~36VDC/RS485 MODBUS RTU
Measurement mode	135°IR scattered light method

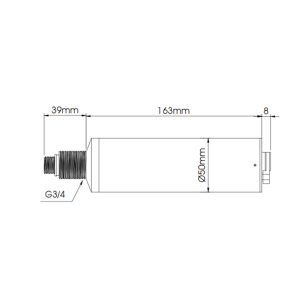

Dimensions	Diameter 50mm*Length 210mm
Housing material	PVC+316 Stainless steel
Waterproof rating	IP68
Measurement range	0.1-4000 NTU
Measurement accuracy	±5% or 0.5NTU,whichever is grater
Pressure resistance	≤0.3Mpa
Measuring temperature	0-45℃
Calibration	Standard liquid calibration, water sample calibration
Cable length	Default 10m,can be extended to 100m
Thread	G3/4
Weight	2.0kg
Application	General applications, rivers, lakes, environmental protection, etc.

FAQ

Q1: What’s your business range?
A: We manufacture Water quality analysis instruments and provide dosing pump, diaphragm pump, water

pump, pressure instrument, flow meter, level meter and dosing system.
Q2: May I visit your factory?
A: Of course, our factory is located in Shanghai, welcome your arrival.
Q3: Why should I use Alibaba Trade Assurance orders?
A: Trade Assurance order is a guarantee to buyer by Alibaba,For after-sales, returns, claims etc.

Q4: Why choose us?
1. We have more than 10 years of industry experience in water treatment.
2. High quality products and competitive price.
3. We have professional business personnel and engineers to provide you with type selection assistance and

technical support.
