Economy Digital pH Sensor Electrode RS485 4~20mA output signal CS1700D

Short Description:

CS1700D Digital pH sensor is suitable for general industrial processes, with double salt bridge design, doublelayer water seepage interface, and resistance to medium reverse seepage. The ceramic pore parameter electrode oozes out of the interface, which is not easy to be blocked, and is suitable for the monitoring of common water. Adopt PTFE large ring diaphragm to ensure the durability of the electrode; Application industry

Model NO.: CS1700D
Installation Type: NPT3/4′′
Waterproof grade: IP68
Trademark: Twinno
Temperature compensation: NTC10K
Housing material: PPS

Send email to us Download as PDF

Product Detail

Product Tags

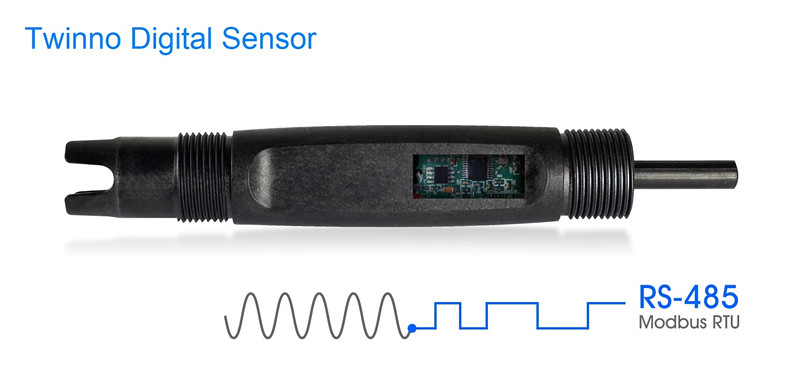

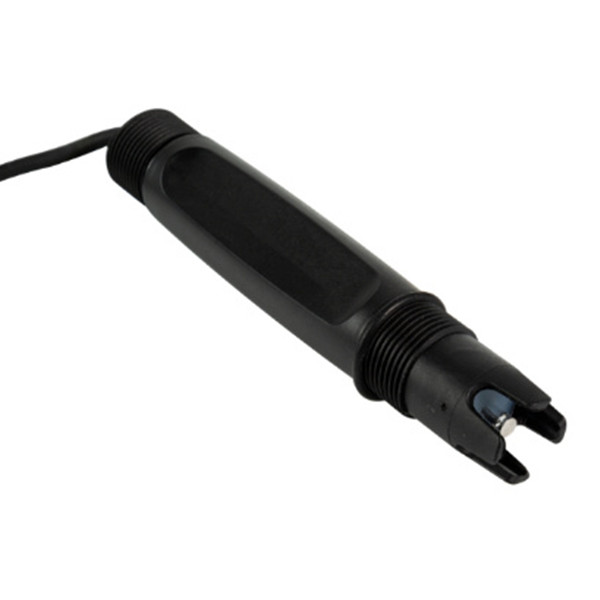

CS1700D Digital pH Sensor Series

CS1700D digital pH sensor is suitable for general industrial processes, with double salt bridge design, double layer water seepage interface, and resistance to medium reverse seepage. The ceramic pore parameter electrode oozes out of the interface, which is not easy to be blocked, and is suitable for the monitoring of common water quality environmental media. Adopt PTFE large ring diaphragm to ensure the durability of the electrode;Application industry: supporting agricultural water and fertilizer machine.

Features
