Industrial Online Digital RS485 Output Signal Automatic Cleaning Oil in Water Sensor CS6900D

Short Description:

Commonly used oil-in-water detection methods include suspension method (D/λ<=1), infrared spectrophotometry (not suitable for low range), ultraviolet spectrophotometry (not suitable for high range), etc. The online oil-in-water sensor adopts the principle of fluorescence method. Compared with several commonly used methods, the fluorescence method is more efficient, quicker and more reproducible, and can be monitored online in real time. The sensor has better repeatability and stability. With an automatic cleaning brush, it can eliminate air bubbles and reduce the impact of contamination on the measurement, making the maintenance cycle longer, and maintaining excellent stability during long-term online use. It can act as an early warning to the pollution of oil in water.

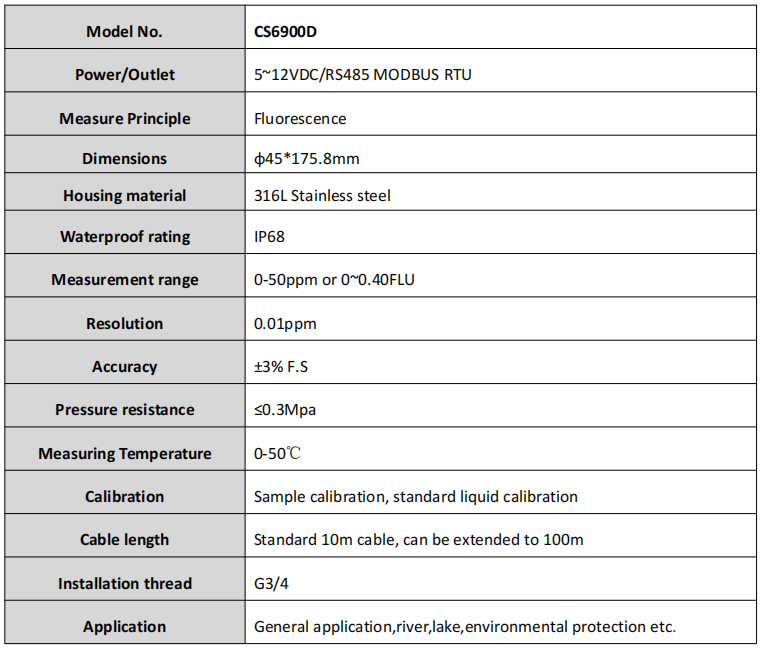

Model NO.: CS6900D
Waterproof rating: IP68
Trademark: twinno
Measurement range:: 0~50mg/l

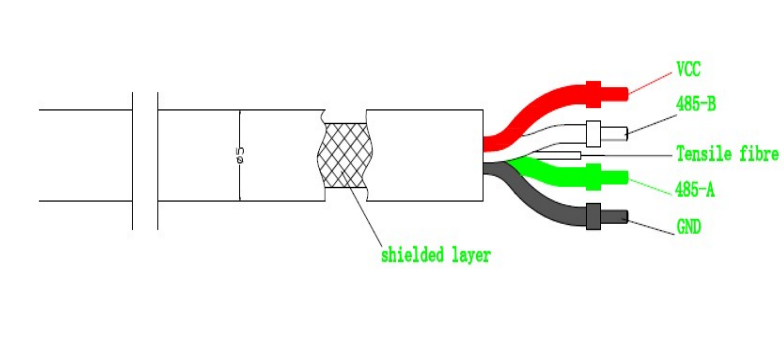

Output: : RS485 MODBUS RTU

Send email to us Download as PDF

Product Detail

Product Tags

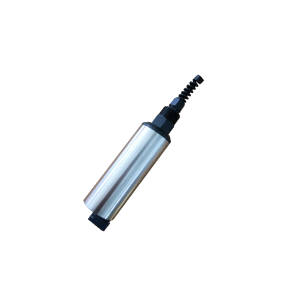

CS6900D Digital Oil Sensor Series

Description

The ultraviolet fluorescence method is used to monitor the oil content in the water body, and the oil concentration in the water body is quantitatively analyzed based on the fluorescence intensity emitted by the petroleum and its aromatic hydrocarbon compounds and compounds containing conjugated double bonds after absorbing ultraviolet light. Aromatic hydrocarbons in petroleum can produce fluorescence under the excitation of ultraviolet light, and the value of oil in water can be calculated according to the intensity of fluorescence.
