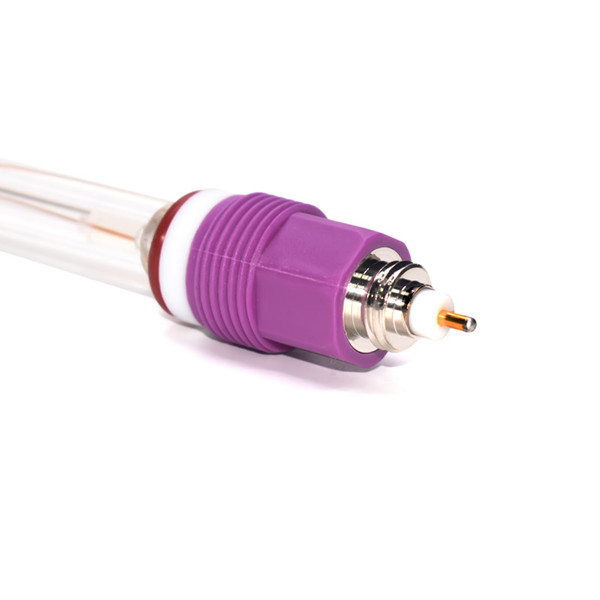

Product Overview
ORP (REDOX potential) is an important index in water quality. Although it can not independently reflect the quality of water quality, it can integrate other water quality indicators to reflect the ecological environment in the aquarium system. Long service life; Can be selected for high alkali/high acid process glass; Continuous and accurate ORP measurement system.
Product characteristics
▪ No need for reagents, no pollution, more economical and environmental protection.
▪ Adopts REDOX potential measurement method to accelerate response time and stable signal.
▪ The electrode is made of glass and can be used at a high temperature of 80℃.
▪ High quality cable for sensor, more accurate and stable signal.
Performance index
| Model Number | CS2500C | CS2501C | CS2503C | CS2503CT | CS2505C | CS2505CT |
| ORP range | ±1000mV | |||||
| Temperature Range | 0-80℃ | |||||
| Pressure Resistance | 0-0.3MPa | |||||
| Temperature Sensor | NO | NTC10K/NTC2.2K/PT100/PT1000 | NO | NTC10K/NTC2.2K/PT100/PT1000 | NO | NTC10K/NTC2.2K/PT100/PT1000 |
| Housing Materia | Glass | |||||
| Measure Materia | pt | |||||
| Reference System | KCL | NANO3 | KNO3 | |||
| Installation Thread | PG13.5 | |||||
| Cable Length | 5m or agreed | |||||
| Application Field | General application | Heavy metals, chloride ions, potassium ions (seawater) | Sodium hypochlorite | |||
| Model Number | CS2543C | CS2543CT |
| ORP range | ±1000mV | |
| Temperature Range | 0-80℃ | |
| Pressure Resistance | 0-0.6MPa | |
| Temperature Sensor | NO | NTC10K/NTC2.2K/PT100/PT1000 |
| Housing Materia | Glass | |
| Measure Materia | pt | |
| Reference System | KCL | |
| Installation Thread | PG13.5 | |
| Cable Length | 5m or agreed | |
| Application Field | General application | |
Product Size
Installation Diagram
1. Side wall installation: ensure that the inclination Angle of the interface is greater than 15 degrees;
2.Top flange installation: pay attention to the flange size and electrode insertion depth;
3. Pipeline installation: pay attention to the diameter of the pipeline, water flow rate and pipeline pressure;
4.Fixed insert installation: pay attention to the flow rate and flow pressure;
5.Sunk installation: pay attention to the length of the support.
6.Flow installation: pay attention to the flow rate and flow pressure;
