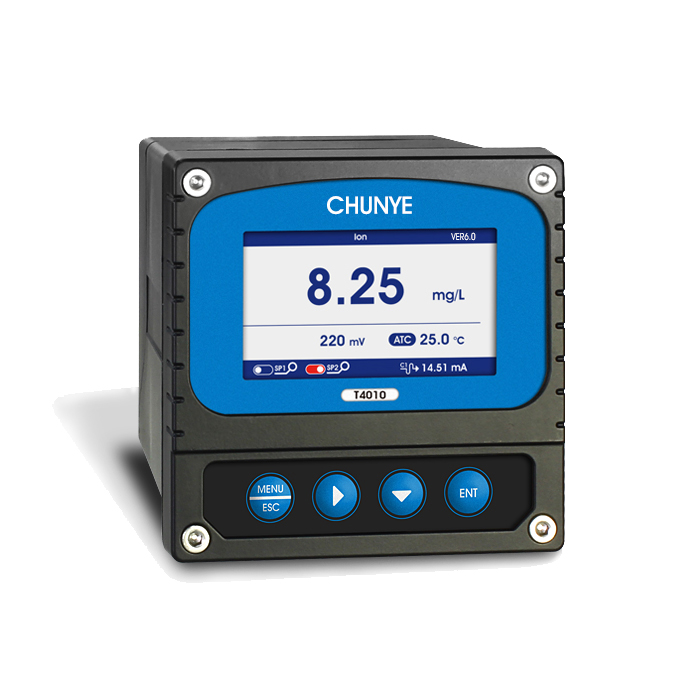

Online Ion Meter T4010
Industrial online Ion meter is an online water quality monitoring and control instrument with microprocessor. It can be equipped with Ion
selective sensor of Fluoride, Chloride, Ca2+, K+, NO3-, NO2-, NH4+, etc.
The instrument is widely used in industrial waste water, surface water, drinking water, sea water, and industrial process control ions on-line automatic testing and analysis, etc. Continuously monitor and control Ion concentration and temperature of aqueous solution.
85~265VAC±10%,50±1Hz, power ≤3W;
9~36VDC, power consumption≤3W;
Technical specifications
Ion: 0~35500mg/L; 0~35500ppm; Temperature: 0~150℃
Online Ion Meter T4010
Features
1.Color LCD display
2.Intelligent menu operation
3.Multiple automatic calibration
4.Differential signal measurement mode, stable and reliable
5.Manual and automatic temperature compensation
6.Two relay control switches
7.4-20mA & RS485,Multiple output modes
8.Multi parameter display simultaneously shows – Ion, Temp, current,etc.
9.Password protection to prevent misoperation by non-staff.
10.The matching installation accessories make the installation of the controller in complex working conditions more stable and reliable.
11.High & low alarm and hysteresis control. Various alarm outputs. In addition to the standard two-way normally open contact design, the option of normally closed contacts is also added to make the dosing control more targeted.
12.The 3-terminal waterproof sealing joint effectively prevents
water vapor from entering, and isolates the input, output and power supply, and the stability is greatly improved. High resilience silicone keys, easy to use, can use combination keys, easier to operate.
13.The outer shell is coated with protective metal paint, and
safety capacitors are added to the power board, which improves the strong magnetic anti-interference ability of industrial field equipment. The shell is made of PPS material for more corrosion resistance. The sealed and waterproof back cover can effectively prevent water vapor from entering, dustproof, waterproof, and corrosion-proof, which greatly improves the protection capability of the whole machine.
Measurement mode
Calibration mode
Setting mode
Electrical connections
Electrical connection The connection between the instrument and the sensor: the power supply, output signal, relay alarm contact and the connection between the sensor and the instrument are all inside the instrument. The length of the lead wire for the fixed electrode is usually 5-10 meters, and the corresponding label or color on the sensor Insert the wire into the corresponding terminal inside the instrument and tighten it.
Instrument installation method
Technical specifications
| Measurement range | 0~35500mg/L(ppm) |
| Measurement Principle | Ion electrode method |
| Resolution | 0.01mg/L(ppm) |
| Basic error | ±2.5% |
| Temperature | 0~50.0°C |
| Temperature resolution | 0.1°C |
| Temperature accuracy | ±0.3°C |
| Temperature compensation | 0~60.0°C |
| Temperature compensation | Manual or automatic |
| Electrode residual signal | <1‰ |
| Response time | 25°C<60S; 35°C<30S (To attain 90%) |
| Stability | At constant pressure and temperature, the weekly drift<2%F•S; |
| Current output | Two:4~20mA,20~4mA,0~20mA(load resistance<750Ω) |
| Communication output | RS485 MODBUS RTU |
| Relay control set-points | Two:3A 250VAC,3A 30VDC |
| Optional power supply | 85~265VAC,9~36VDC,power consumption≤3W |
| Working conditions | No strong magnetic field interference except the geomagnetic field. |
| Working temperature | -10~60°C |
| Relative humidity | ≤90% |
| Waterproof rating | IP65 |
| Weight | 0.6kg |
| Dimensions | 98×98×130mm |
| Installation opening size | 92.5×92.5mm |
| Installation methods | Panel, wall mounting and Pipeline |
