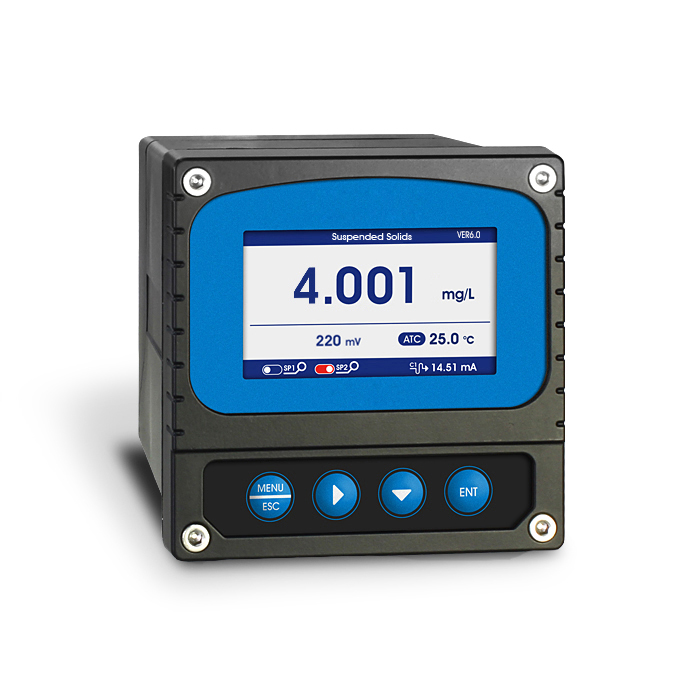

Online Suspended Solids Meter T4075
The principle of the sludge concentration sensor is based on the combined infrared absorption and scattered light method. The ISO7027 method can be used to continuously and accurately determine the sludge concentration.
According to ISO7027 infrared double-scattering light technology is not affected by chromaticity to determine the sludge concentration value. The self-cleaning function can be selected according to the use environment. Stable data, reliable performance; built-in self-diagnosis function to ensure accurate data; simple installation and calibration.
Typical Use
The online suspended solids meter is an online analytical instrument designed to measure the sludge concentration of water from waterworks, municipal pipeline network, industrial process water quality monitoring, circulating cooling water, activated carbon filter effluent, membrane filtration effluent, etc. especially in the treatment of municipal sewage or industrial wastewater. Whether evaluating activated sludge and the entire biological treatment process, analyzing wastewater discharged after purification treatment, or detecting sludge concentration at different stages, the sludge concentration meter can give continuous and accurate measurement results.
Mains Supply
85～265VAC±10%, 50±1Hz，power consumption≤3W 9～36VDC，Power consumption：≤3W
Measuring Range
Suspended Solids(sludge concentration): 0~99999mg/L

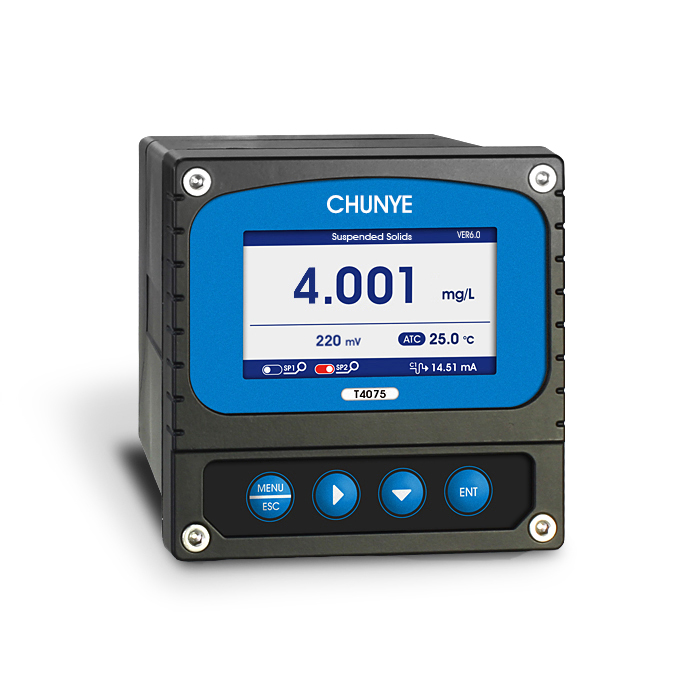

Online Suspended Solids Meter T4075
Measurement Mode
Calibration mode
Setting mode
Features
1.Large display, standard 485 communication, with online and offline alarm, 98*98 *130mm meter size, 92.5*92.5mm hole size, 3.0 inch large screen display.
2.Real-time online recording of MLSS/SS, temperature data and curves, compatible with all water quality meters of our company.
3.0-500mg/L, 0-5000mg/L, 0-100g/L, a variety of measuring ranges are available, suitable for different working conditions, the measurement accuracy is less than ±5% of the measured value.
4.The new choke inductance of the power board can effectively reduce the influence of electromagnetic interference, and the data is more stable.
5.The design of the whole machine is waterproof and dustproof, and the back cover of the connection terminal is added to extend the service life in harsh environments.
6.Panel/wall/pipe installation, three options are available to meet various industrial site installation requirements.
Electrical connections
Electrical connection The connection between the instrument and the sensor: the power supply, output signal, relay alarm contact and the connection between the sensor and the instrument are all inside the instrument. The length of the lead wire for the fixed electrode is usually 5-10 meters, and the corresponding label or color on the sensor Insert the wire into the corresponding terminal inside the instrument and tighten it.
Instrument installation method
Technical specifications
| Measurement range | 0~500~5000mg/L;0~50~100g/L(Can be extended) |
| Measurement unit | mg/L; g/L |
| Resolution | 0.001mg/L;0.1g/L |
| Basic error | ±1%F.S
˫ |
| Temperature | 0~50
˫ |
| Temperature Resolution | 0.1
˫ |
| Temperature Basic error | ±0.3 |
| Current outputs | Two 4~20mA,20~4mA,0~20mA |
| Signal output | RS485 MODBUS RTU |
| Other functions | Data record |
| Three relay control contacts | 5A 250VAC,5A 30VDC |
| Optional power supply | 85~265VAC,9~36VDC,power consumption≤3W |
| Working conditions | No strong magnetic field interference around except the geomagnetic field.
˫ |
| Working temperature | -10~60 |
| Relative humidity | ≤90% |
| Waterproof rating | IP65 |
| Weight | 0.6kg |
| Dimensions | 98×98×130mm |
| Installation opening size | 92.5×92.5mm |
| Installation methods | Panel & wall mounted or pipeline |
